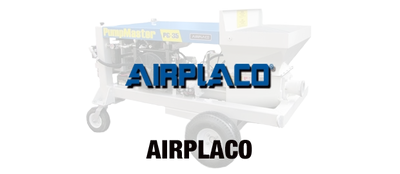

Airplaco pumps

Since 1946. American Owned. American Built. Airplaco© have been leaders in dry-mix (gunite) and wet-mix shotcrete equipment manufacturing since the invention of the process. We manufacture Grout Pumps, Mudjack Pumps, Masonry Pumps, Plaster/Stucco Pumps, Fireproofing, Mixers/Pumps, Concrete Pumps, Shotcrete Pumps, Gunite Equipment, concrete finishing tools, and parts & accessories for these machines.


For more information and a complete description of the pumps we offer by AIRPLACO, please click on the category links below.


Grout Pumps

• PG-10 - Hydraulic Powered, Skid Steer Grout Pump

• HGA-530 - All-In-One Grout Plant

• MJ-17 - Slabjack/Mudjack Pump - Concrete Leveling Pump

• PG-25 - Grout Pump - Block Fill

• PG-35 - Masonry Grout & Wet Shotcrete Pump

• PG-35SE - Electric Masonry Grout & Wet Shotcrete Pump


Shotcrete & Gunite Machines

• ProCretor PC3 - Wet Shotcrete, High Pressure Pump

• PumpMaster PG35 - Masonry Grout & Wet Shotcrete Pump

• PumpMaster PG35SE - Masonry Grout & Wet Shotcrete Pump

• Cyclone - Gunite & Dry Mix Shotcrete Machine

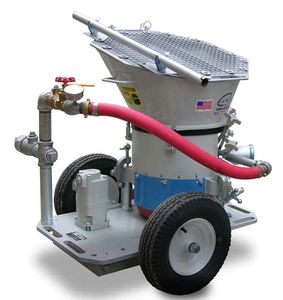

• C10-SL - Rotary Gunite & Dry-Mix Machine

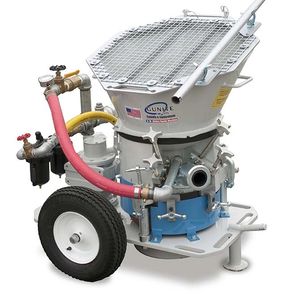

• C10-HHD - Rotary Gunite & Dry-Mix Machine


Dry-Mix Batch Plants

• 914 - Mobile Gunite Batch Plant

• 634 - Mix-Elvator High Production Gunite Batch Plant

• Pre-Dampener - Gunite & Dry-Mix Material Delivery Machine





Grout Pumps

AIRPLACO Skid Steer Hydraulic Grout Pump PG-10

PG-10 Hydraulic Powered, Skid Steer Grout Pump

The Airplaco PG-10 is a hydraulic grout pump featuring a full-flow ball check manifold and is designed for masonry block fill, piling encasements, pea gravel pumping, concrete leveling and other grouting applications. The PG-10 skid steer grout pump is powered by your existing hydraulic power source and is designed to perform from one job to the next with low maintenance. The PG-10 hydraulic grout pump offers high output without the need for constant lubrication and features a long-life hard chrome cylinder that ensures a long service life. The PG-10 grout pump is a perfect choice for contractors with an existing hydraulic power source, such as a skid steer or hydraulic power pack looking for a durable grout pump capable of varied applications. If you are looking for the performance and versatility that the PG-10 offers but want a self-powered machine check out the PumpMaster PG-25.


KEY FEATURES

• Long-Life Hard Chrome Cylinder

• Pea-Rock Discharge

• Variable Speed

• Hydraulic Pump

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:......................................... 325 lbs

Length:................................................ 68”

Width:.................................................. 29”

Hopper Height:................................... 38”

Brakes:................................................. 36”

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 7 cu ft

Fuel Tank Capacity:............................

Engine:................................................ Auxiliary Hydraulic

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve:....................................

Discharge Diameter Outlet:............... 3”

Cylinder Stroke:................................. 8”

Cylinder Diameter:............................ Single 5”

Maximum Aggregate:........................ 3/8”

Piston Head Pressure:...................... 0 to 400 PSI

Theoretical Output (C.Y.P.H.):........... 4 yd3/hr

AIRPLACO Handy-Grout HGA-530

HGA-530 All-In-One Grout Plant

The Airplaco Handy-Grout HGA-530 grout plant features the Airplaco Handy-Grout HGA-50 pump with the addition of a 30-gallon mixer. The Airplaco Model HGA-530 grout plant allows self-sufficiency on the job site by combining an air-powered piston pump and a high-speed mixer powered by a 5-hp air motor. The HGA-530 grout plant is the most durable all-in-one grouting unit in its class. The HGA-530 provides the performance and reliability demanded by a variety of grouting applications such as piling encasements, machine base stabilization, void filling, and more. The HGA-530 handles a wide variety of high-viscosity slurries;  it is an ideal pump for general contractors, restoration contractors and public works departments who need an all-in-one mixer/pump grout plant. The Handy-Grout HGA-530 has options for skid or wheel mount, call one of our experts to discuss the options that will best fit your needs.


KEY FEATURES

• 30 Gallon Mixer

• Skid or Wheel Mount

• 5 HP Air Motor

• Includes HGA-50 Pump

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.



Weight Dry:..................................... 395 lbs

Length:............................................ 55”

Width:.............................................. 29”

Hopper Height:............................... 48”

Brakes:............................................. 36”

Tires:................................................ 8 gal.

Axle:.................................................

Hopper Capacity:............................

Fuel Tank Capacity:........................

Engine:............................................ Compressed air 85 cfm @ 110 PSI for max rate

Hydraulic Tank Capacity:...............

Main Hydraulic Pump:...................

Material Valve:................................

Discharge Diameter Outlet:........... 1.25”

Cylinder Stroke:.............................

Cylinder Diameter:........................

Maximum Aggregate:....................

Piston Head Pressure:.................. 0 to 250 PSI

Theoretical Output (C.Y.P.H.):....... 50 cu ft/hr

AIRPLACO Slabjack Pump, Concrete Leveling Pump MJ17

MJ-17 - Slabjack/Mudjack - Concrete Leveling Pump

The Pumpmaster MJ-17 is a self-propelled grout pump designed for mudjacking/slabjacking, void fill and general pressure grouting applications. The MJ-17 features a hard-chrome long-life material cylinder, Subaru key start gasoline engine, 6 cu ft. material hopper, open throat manifold system and plunger-type piston, pivoting front axle, construction grade remote, joystick operated self-propulsion and the Airplaco exclusive hydraulic flow control valve.


KEY FEATURES

• 14 HP Gas Engine

• Piston Pump

• Open Throat Manifold

• Optional Hood

• Optional Flow Control Valve

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:......................................... lbs

Length:................................................ 80”

Width:.................................................. 31”

Hopper Height:................................... 40”

Brakes:................................................. 38”

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 7 cu ft

Fuel Tank Capacity:............................

Engine:................................................ 14 hp Gas

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve:.................................... Open Throat

Discharge Diameter Outlet:............... 2”

Cylinder Stroke:................................. 8”

Material Cylinder Diameter:............. Single 5”

Maximum Aggregate:........................ 1/8”

Piston Head Pressure:...................... 0 to 400 PSI

Theoretical Output (C.Y.P.H.):........... 4 yd3/hr

AIRPLACO Grout Pump Block Fill PumpMaster PG-25

PG - 25 Grout Pump - Block Fill

The Airplaco PumpMaster PG-25 is a multipurpose grout pump featuring a full-flow ball check manifold and is designed for masonry block fill, piling encasements, pea gravel pumping, concrete leveling and other grouting applications. The versatility of the PumpMaster PG-25 grout pump makes it the ideal machine for a contractor that needs a pump for more than one job application. The PG-25 includes the exclusive Airplaco hydraulic drive train, ball-check manifold, and self-propelled movement is designed for easy mobility in tight spaces on the job site. The PumpMaster PG-25 multipurpose grout pump is also available as electric powered and propane powered.


KEY FEATURES

• Long-Life Hard Chrome Cylinder

• Pea-Rock Discharge

• Variable Speed

• Optional LP Gas Power

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:......................................... 860 lbs

Length:................................................ 84”

Width:.................................................. 31”

Hopper Height:................................... 40”

Brakes:................................................. 38”

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 7 cu ft

Fuel Tank Capacity:............................

Engine:................................................ 23.5 HP Gas

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve:.................................... Ball-Check

Discharge Diameter Outlet:...............  3”

Cylinder Stroke:.................................. 8”

Cylinder Diameter:............................ Single 5”

Maximum Aggregate:........................ 3/8”

Piston Head Pressure:...................... 0 to 500 PSI

Theoretical Output (C.Y.P.H.):........... 7 yd3/hr

AIRPLACO Masonry Grout/ Wet Shotcrete Pump PumpMaster PG-35

MPG-35 Masonry Grout & Wet Shotcrete Pump

The PumpMaster PG-35 is an innovative grout pump and is the machine of choice for masonry block fill jobs. Compact and powerful, the PG-35 empties a ready mix truck in an hour, reducing labor costs as it increases efficiency and portability. The PG-35 masonry grout pump can be transported on a trailer or in a typical pickup truck; contractors can use existing mixers and material silo systems. The PG-35 features electronic proxy-switch hydraulic technology, variable speed pumping with forward and reverse capabilities, and fork slots are included for convenience. The PumpMaster PG-35 grout pump can also be ordered as skid mount or with an electric power option; contact one of our experts for more details.


Complete grout material delivery packages are available for the masonry contractor for use with PumpMaster grout pumps. Various size grout hose, block fill nozzles (steel wall hook pipe) and all clamps (heavy-duty or grooved) complete the system. Other accessories, such as grout hose primer and cleanout devices ensure your complete setup.


KEY FEATURES

• 10 Yards per Hour Production Rate

• Swing Tube Material Valve

• Self-Propelled

• Variable Speed

• Optional Wireless Remote

• Electric Powered Version

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:......................................... 1400 lbs

Length:................................................ 80”

Width:.................................................. 50

Hopper Height:................................... 47”

Brakes:................................................. 41”

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 5 cu. ft.

Fuel Tank Capacity:............................

Engine:................................................ 35 HP Gas

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve:.................................... Swing Tube

Discharge Diameter Outlet:............... 4” HD

Cylinder Stroke:................................. 16”

Cylinder Diameter:............................ Dual 4”

Maximum Aggregate:........................ 3/4”

Piston Head Pressure:...................... 0 to 500 PSI

Theoretical Output (C.Y.P.H.):...........10 yd3/hr

AIRPLACO Masonry Grout/ Wet Shotcrete Pump PumpMaster PG-35SE

PG-35SE Electric Masonry Grout & Wet Shotcrete Pump

The PumpMaster PG-35SE is an electric concrete pump and is the machine of choice for many applications.  Compact and powerful, the PG-35SE empties a ready mix truck in an hour, reducing labor costs as it increases efficiency and portability. The PG-35 SE concrete pump can be transported on a trailer or in a pickup truck; contractors can use existing mixers and material silo systems. The PG-35SE features electronic proxy-switch hydraulic technology, variable speed pumping with forward and reverse capabilities. The Airplaco PumpMaster PG-35 skid electric concrete pump is also available as a gas powered option.


Complete grout material delivery packages are available for the masonry contractor for use with PumpMaster pumps. Various size grout hose, block fill nozzles (steel wall hook pipe) and all clamps (heavy-duty or grooved) complete the system. Other accessories, such as grout hose primer and cleanout devices ensure your complete setup.


KEY FEATURES

• 10 Yards per Hour Production Rate

• Swing Tube Material Valve

• Self-Propelled

• Variable Speed

• Optional Wireless Remote

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.



Weight Dry:......................................... 2175 lbs

Length:................................................ 46”

Width:.................................................. 86"

Hopper Height:................................... 36”

Brakes:................................................. 42”

Hopper Capacity:................................ 5 cu. ft.

Engine:................................................ 30 HP Electric

Material Valve:.................................... Swing Tube

Discharge Diameter Outlet:............... 4”

Cylinder Stroke:................................. 16”

Cylinder Diameter:............................ Dual 4”

Maximum Aggregate:........................ 3/4”

Piston Head Pressure:....................... 0 to 500 PSI

Theoretical Output (C.Y.P.H.):........... 10 yd3/hr

Shotcrete & Gunite Machines

AIRPLACO High Pressure Wet Shotcrete Pump ProCretor PC3

ProCretor PC3 - Wet Shotcrete, High Pressure Pump

The Airplaco Pro-Cretor PC-3 high pressure shotcrete pump / mixer  is the contractors all-in-one solution for shotcrete material placement, concrete lifting, grout pumping and concrete repair. The Pro-Cretor is commonly used for road and highway maintenance, structural concrete reinforcement, road slabjacking, bridge and tunnel repairs, it is approved by counties, municipalities, cities and state road departments for a range of concrete infrastructure maintenance. The Pro-Cretor high pressure shotcrete pump / mixer provides a heavy-duty solution for shotcreting applications, the PC-3 incorporates a 3 inch S-tube material valve with reversing capabilities, dual hard-chrome plated material cylinders, variable speed hydraulic piston pump with remote, diesel engine, wide axle trailer and hydraulic surge brakes.


Various size hose, nozzles, and clamps are available to customize the Pro-Cretor to any job you want to use it for.


KEY FEATURES

• 10 Cubic-Foot Mixer

• 11 Cubic-Foot Hopper

• Swing Tube Material Valve

• Proxy-Switch Technology

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.



Weight Dry:......................................... 3770 lbs

Length:................................................ 148”

Width:.................................................. 79”

Hopper Height:................................... 50”

Brakes:................................................. 43”

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 11 cu ft

Fuel Tank Capacity:............................

Engine:................................................ 46 HP Diesel

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve:.................................... Swing Tube

Discharge Diameter Outlet:............... 3”

Cylinder Stroke:................................. 16”

Cylinder Diameter:............................ Dual 3”

Maximum Aggregate:........................ 3/4”

Piston Head Pressure:...................... 0 to 1,300 PSI

Theoretical Output (C.Y.P.H.):.......... 7 yd3/hr

AIRPLACO Masonry Grout/ Wet Shotcrete Pump PumpMaster PG-35

PumpMaster PG35 - Masonry Grout & Wet Shotcrete Pump

The PumpMaster PG-35 is an innovative grout pump and is the machine of choice for masonry block fill jobs. Compact and powerful, the PG-35 empties a ready mix truck in an hour, reducing labor costs as it increases efficiency and portability. The PG-35 masonry grout pump can be transported on a trailer or in a typical pickup truck; contractors can use existing mixers and material silo systems. The PG-35 features electronic proxy-switch hydraulic technology, variable speed pumping with forward and reverse capabilities, and fork slots are included for convenience. The PumpMaster PG-35 grout pump can also be ordered as skid mount or with an electric power option; contact one of our experts for more details.


Complete grout material delivery packages are available for the masonry contractor for use with PumpMaster grout pumps. Various size grout hose, block fill nozzles (steel wall hook pipe) and all clamps (heavy-duty or grooved) complete the system. Other accessories, such as grout hose primer and cleanout devices ensure your complete setup.


KEY FEATURES

• 10 Yards per Hour Production Rate

• Swing Tube Material Valve

• Self-Propelled

• Variable Speed

• Optional Wireless Remote

• Electric Powered Version

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.



Weight Dry:......................................... 1400 lbs

Length:................................................ 80”

Width:.................................................. 50

Height:................................................ 47”

Hopper Height:................................... 41”

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 5 cu. ft.

Fuel Tank Capacity:............................

Engine:................................................ 35 HP Gas

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve:.................................... Swing Tube

Discharge Diameter Outlet:............... 4” HD

Cylinder Stroke:................................. 16”

Cylinder Diameter:............................ Dual 4”

Maximum Aggregate:........................ 3/4”

Piston Head Pressure:...................... 0 to 500 PSI

Theoretical Output (C.Y.P.H.):.......... 10 yd3/hr

AIRPLACO Masonry Grout/ Wet Shotcrete Pump PumpMaster PG-35SE

PumpMaster PG35SE - Electric Masonry Grout & Wet Shotcrete Pump

The PumpMaster PG-35SE is an electric concrete pump and is the machine of choice for many applications.  Compact and powerful, the PG-35SE empties a ready mix truck in an hour, reducing labor costs as it increases efficiency and portability. The PG-35 SE concrete pump can be transported on a trailer or in a pickup truck; contractors can use existing mixers and material silo systems. The PG-35SE features electronic proxy-switch hydraulic technology, variable speed pumping with forward and reverse capabilities. The Airplaco PumpMaster PG-35 skid electric concrete pump is also available as a gas powered option.


Complete grout material delivery packages are available for the masonry contractor for use with PumpMaster pumps. Various size grout hose, block fill nozzles (steel wall hook pipe) and all clamps (heavy-duty or grooved) complete the system. Other accessories, such as grout hose primer and cleanout devices ensure your complete setup.


KEY FEATURES

• 10 Yards per Hour Production Rate

• Swing Tube Material Valve

• Self-Propelled

• Variable Speed

• Optional Wireless Remote

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.



Weight Dry:......................................... 2175 lbs

Length:................................................ 46”

Width:.................................................. 86"

Height:................................................. 42”

Hopper Height:................................... 36”

Hopper Capacity:................................ 5 cu. ft.

Engine:................................................ 30 HP Electric

Material Valve:.................................... Swing Tube

Discharge Diameter Outlet:............... 4”

Cylinder Stroke:................................. 16”

Cylinder Diameter:............................ Dual 4”

Maximum Aggregate:........................ 3/4”

Piston Head Pressure:...................... 0 to 500 PSI

Theoretical Output (C.Y.P.H.):.......... 10 yd3/hr


Cyclone - Gunite & Dry Mix Shotcrete Machine

The Airplaco Cyclone is a rotary bowl-type gunite machine designed and manufactured for powerful material placement using a compact mobile gunite machine. The Cyclone delivers a smooth, steady flow of premixed material into various hose sizes and allows even hydration at the nozzle. The Cyclone shotcrete machine is ideal for concrete repair projects and features multi-vane 5 hp air motor, continuous feed hopper, exhaust suppression chamber and six-point pad holding system.


The Airplaco Cyclone shotcrete machine is a low to medium production, continuous-feed material placement unit for dry-mix gunite or refractory materials. The Cyclone is typically used for concrete repair projects. The Cyclone features a premium-life feed system, molded discharge liner and exhaust suppression chamber. All units are supplied with air line regulating valves, choice of low, medium or high production feed system and short premix hopper assembly.


KEY FEATURES

• Multi-Vane 5 HP Air Motor

• Continuous Feed Hopper

• Exhaust Suppression Chamber

• Six-Point Pad Holding System


Weight Dry:........................................... 590 lbs

Length:................................................ 37"

Width:................................................. 28"

Height:................................................ 41”

Max Output:....................................... 12 yd3/hr (9.2 m3)

Motor:................................................. 5 hp air

Air Compressor Req:.......................... 365–900 cfm

Feed System:...................................... Included

Hinged Hopper:................................. No

External Lubrication:......................... No

Drive System:..................................... Put Gear

Outlet Size:........................................ 1/5 to 2 in.

Maximum Aggregate:........................ 3/8 in. minus (9.5 mm)

Maximum Vertical:............................ 300 ft (91 m)

Maximum Horizontal:....................... 1000 ft (300 m)


Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


C10-SL - Rotary Gunite & Dry-Mix Machine

The Airplaco C-10SL is a rotary bowl-type dry-mix gunite machine powered by an air motor designed for high production concrete construction applications. The C-10SL is the concrete sprayer contractors choose who want a durable shotcrete machine for concrete construction projects. The Airplaco C-10SL gunite machine provides maximum performance and efficiency due to its heavy-duty design and powerful output. The C-10SL dry-mix gunite machine features a premium-life feed system, molded discharge liner and exhaust suppression chamber. A tilt-hopper provides easy access for cleaning and setup. All units include air line regulating valves, choice of high or medium-production feed system and hopper assembly. An air compressor is required to power the C-10SL shotcrete machine. If you have an existing batch plant that you want to use to power your shotcrete machine, take a look at our C-10HHD model which is powered by a power take-off (PTO) connection.


KEY FEATURES

• 9 HP Air Motor with Gear Drive

• Six-Point Pad Holding

• External Lubrication Access

• Hinged Hopper

• CE Certified


Weight Dry:........................................... 740 lbs (335 kg)

Length:................................................ 37"

Width:................................................. 28"

Height:................................................ 41”

Max Output:....................................... 15 yd3/hr (11.5 m3)

Motor:................................................. 9 hp air

Air Compressor Req:..........................  365–900 cfm

Feed System:...................................... Included

Hinged Hopper:................................. Yes

External Lubrication:......................... Yes

Drive System:..................................... Spur Gear

Outlet Size:........................................ 1/5 to 2 in.

Maximum Aggregate:........................ 3/4 in. minus (19 mm)

Maximum Vertical:............................ 300 ft (91 m)

Maximum Horizontal:....................... 1000 ft (300 m)


Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


C10-HHD - Rotary Gunite & Dry-Mix Machine

The Airplaco C-10HHD is a rotary bowl-type dry-mix gunite machine powered by a power take-off (PTO) connection and is designed for high production concrete construction applications. The C-10HHD is the shotcrete machine for contractors who want a durable gunite machine for concrete construction projects. The Airplaco C-10HHD gunite machine provides maximum performance and efficiency due to its heavy-duty design and powerful output. The C-10HHD dry-mix shotcrete machine is exclusive to the gunite and shotcrete industry, offering a hydraulic motor to rotate the machine’s feed system. C-10HHD gunite machines are typically used with batch plants, which provide a power-take-off (PTO) to the motor on the shotcrete machine. The hydraulic motor reduces the overall amount of air needed to power the machine. The C-10HHD dry-mix gunite machine features a premium-life feed system, molded discharge liner and exhaust suppression chamber. A tilt-hopper provides easy access for cleaning and setup. All units include air line regulating valves, choice of high or medium-production feed system and hopper assembly.


KEY FEATURES

• Six-Point Pad Holding

• External Lubrication Access

• Hinged Hopper

• CE Certified


Weight Dry:........................................... 740 lbs (335 kg)

Length:................................................ 37"

Width:................................................. 28"

Height:................................................ 41”

Max Output:....................................... 15 yd3/hr (11.5 m3)

Motor:................................................. Hydraulic

Air Compressor Req:.......................... 365–900 cfm

Feed System:...................................... Included

Hinged Hopper:................................. Yes

External Lubrication:......................... Yes

Drive System:..................................... Direct

Outlet Size:........................................ 1/5 to 2 in.

Maximum Aggregate:........................ 3/4 in. minus (19 mm)

Maximum Vertical:............................ 300 ft (91 m)

Maximum Horizontal:....................... 1000 ft (300 m)


Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.

Dry-Mix Batch Plants

AIRPLACO 914 Mobile Gunite Batch Plant

M914 - Mobile Gunite Batch Plant

The Airplaco 914 dry-mix gunite mobile batch plant allows you to mix the desired dry-mix gunite material on your job site eliminating the need for ready-mix deliveries. The 914 incorporates a hydraulic ratio proportioning system and an efficient, low-maintenance hydraulic drive train. The 914 mobile gunite batch plant is used to mix sand and cement materials and deliver the dry-mixed materials to a unite machine. The 914 cuts material costs, reduces labor hours and improves efficiency, giving you complete control of your dry-mix material production and delivery. The 914 mobile batch plant is available as either truck-mounted (914MB) or trailer mounted (914MBT), allowing you to choose the design that best fits your equipment and job needs. The 914 mobile batch plant is a heavy-duty piece of equipment for gunite contractors who are looking to be more competitive in the field.


KEY FEATURES

• Automatic Material Proportioning

• Heavy-Duty Hydraulic Drive

• Continuous Feed

• Safety-Lock Rams

• Trailer or Truck Mount Option

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:......................................... 14380 lbs

Length:................................................ 25”

Width:.................................................. 8”

Height:................................................ 10”

Proportioning System:....................... Hydraulic-Ratio

Cement Hopper Capacity:................. 100 ft3

Sand Hopper Capacity:...................... 378 ft3

Feed System:...................................... Twin Augers

Engine:................................................ 66 HP Diesel

Mounting:........................................... Trailer or Truck

Drive Train:......................................... Hydraulic

Theoretical Output (C.Y.P.H.):............ 14 yd3/hr

AIRPLACO High Production Gunite Batch Plant Mi-Elvator 634

634 - Mix-Elvator High Production Gunite Batch Plant

The Airplaco Mix-Elvator 634 is a dry-mix gunite batch plant used for sand and cement proportioning, mixing and conveying of dry gunite and refractory materials. Combined with a rotary unite machine, the Mix-Elvator becomes a self-contained rig–eliminating the need for ready-mix deliveries.


The Mix-Elvator features a 30 hp diesel engine, low-maintenance hydraulic drive train and the Airplaco “Hydraulic-Ratio” control system. Coupled with the Airplaco C-10HHD gunite machine, the Mix-Elvator dry-mix gunite batch plant can be used for a variety of applications such as: pools and spas, refractories, mining, retention walls and more.


KEY FEATURES

• 30 HP Diesel Engine

• Self-Contained Rig

• Heavy-Duty Mix Auger

• All Hydraulic Proportioning System

• Automatic Material Proportioning

• Heavy-Duty Hydraulic Drive

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:.......................................... 4300 lbs

Length:................................................. 16”

Width:................................................... 7”

Height:.................................................. 7”

Proportioning System:........................ Hydraulic-Ratio

Cement Hopper Capacity:................... 4 ft3

Sand Hopper Capacity:....................... 20 ft3

Feed System:....................................... Twin Augers

Engine:................................................. 30 HP Diesel

Hose Reel Capacity:............................. 250 ft

Mounting:............................................ Trailer

Drive Train:.......................................... Hydraulic

Theoretical Output (C.Y.P.H.):............. 13 yd3/hr

AIRPLACO Gunite/Dry-Mix Material Delivery Pre-Dampener

Pre-Dampener - Gunite & Dry-Mix Material Delivery Machine

The Airplaco Pre-Dampener is designed for on-site pre-dampening of dry-gunite and refractory materials; it adds a variable stream of water content to pre-bagged materials before feeding materials into a unite machine. Pre-dampening reduces dust, rebound and static electricity while improving the compaction of material on the construction surface. The Pre-Dampener provides the operator fingertip control of hydrating and conveying production rates.


KEY FEATURES

• Simplified Design

• Improves Material Compaction

• Easy-to-Clean

• Reduces Dust

• Reduces Static Electricity

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.


Weight Dry:.......................................... 1635 lbs

Length:................................................. 10”

Width:................................................... 4”

Height:.................................................. 6”

Sand Hopper Capacity:........................ 4 ft3

Feed System:........................................ Single Auger

Engine:.................................................. 9 HP Air (or electric option)

Mounting:............................................. Skid

Drive Train:........................................... Mechanical

Theoretical Output (C.Y.P.H.):.............. 12 yd3/hr
