Olinpump pumps

Olinpump produces a wide range of pumps for concrete, shotcrete and grout. American made and manufactured for high durability and value, Olin pumps are sold through a national network of distributors like Action Pumping Supply.


Olinpump's Ball-Valve pumps offer easy operation and simple, economical maintenance. These rugged pumps are ideally suited for pumping grout and light concrete mixes containing aggregate sized to 1/2'. Several ball-valve models are designed specifically for grout, pressure-grout, shotcrete and concrete with capacities from 30 - 140 cubic yards and hour and pressures from 750 - 1,100 psi.


Olinpump's "S-Tube" or "Rock-Valve" pumps handle aggregate sized up to 1.5" with capacities from 32 - 100 cubic yards per hour. These models feature harsh-mix hoppers with optional agitators and Olin's exclusive, removable rear hopper plate for quick and easy servicing and their "Olintuf" Spectacle wear-plate and cutting ring.


Olinpump pumps are backed by a one-year / 1,000 hour warranty.


For more information and a complete description of the pumps we offer by OLINPUMP, please click on the category links below.


"SC" Series - Shotcrete S-Tube Pumps

• SC 25 Shotcrete S-Tube Pump

• SC 55 Shotcrete S-Tube Pump


"15" Series  - S-Tube Pumps

• 15 30 S-Tube Pump

• 15 35 S-Tube Pump

• 15 45 S-Tube Pump

• 15 55 S-Tube Pump

• 15 75 S-Tube Pump

• 15 95 S-Tube Pump

• 15 130 S-Tube Pump


"5" Series - Small Line Ball Valve Pumps

• 5 25 Small Line Ball Valve Pump

• 5 30 Small Line Ball Valve Pump

• 5 45 Small Line Ball Valve Pump

• 5 60 Small Line Ball Valve Pump

• 5 95 Small Line Ball Valve Pump

• 5 110 Small Line Ball Valve Pump


"5" Series - Deep Foundation Ball Valve Pumps

• 5 75CA Deep Foundation Ball Valve Pump

• 5 100CA Deep Foundation Ball Valve Pump

• 5 140CA Deep Foundation Ball Valve Pump

• 5 200CA Deep Foundation Ball Valve Pump



"SC" SERIES - Shotcrete S-TUBE PUMPS

Olinpump SC 25 SHOTCRETE S-TUBE PUMP

OLINPUMP SC 25

The 5 75 & 100's 8" delivery cylinders combined with the Millennium Series manifold, handle high sack structural 1/2" minus & grout mixes, making them the perfect choice for Auger Cast Pile and large slurry backfill jobs.


Weight Dry:......................................... 5400 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... 57"

Brakes:................................................. N/A

Tires:.................................................... 236/80 R16

Axle:..................................................... Torsion 7000 lbs

Hopper Capacity:................................ 9 cu ft

Fuel Tank Capacity:............................ 27 gal

Engine:................................................ JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:................... 85 gal

Main Hydraulic Pump:....................... KPM K3VL140

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............ 8"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 130

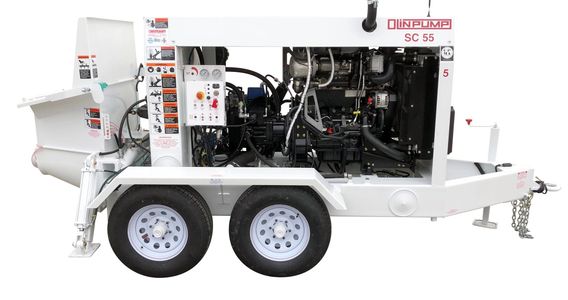

Olinpump SC 55 SHOTCRETE S-TUBE PUMP

OLINPUMP SC 55

Weight Dry:......................................... 5750 lbs

Length:................................................ 205"

Width:.................................................. 175"

Hopper Height:................................... 70"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ cu ft

Fuel Tank Capacity:............................ 70 gal

Engine:................................................ JCB EcoMAX  hp

Hydraulic Tank Capacity:................... 81 gal

Main Hydraulic Pump:....................... KPM K3VL

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... "

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............. "

Maximum Aggregate:......................... "

Piston Head Pressure:....................... 1230 psi

Theoretical Output (C.Y.P.H.):............ 63

"15" SERIES - S-Tube PUMPS

Olinpump 15 30 S-TUBE PUMP

OLINPUMP 15 30

With variable displacement, single source hydraulics make the smallest, most economical of Olin’s S-Tube Stationary Pumps even more simple to operate. With all the same great features of the larger pumps, simplicity of design, high efficiency, maintenance friendliness, great value, and after sale support unequaled in the industry.


Weight Dry:......................................... 4590 lbs

Length:................................................ 162"

Width:.................................................. 70"

Hopper Height:................................... 46"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Torsion 5600 lbs

Hopper Capacity:................................ 8 cu ft

Fuel Tank Capacity:............................ 23 gal

Engine:................................................ KD11903 48hp

Hydraulic Tank Capacity:................... 81 gal

Main Hydraulic Pump:....................... KPM K3VL60

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 24"

Concrete Cylinder Diameter:............ 5"

Maximum Aggregate:........................ 1"

Piston Head Pressure:...................... 750 psi

Theoretical Output (C.Y.P.H.):........... 30


OLINPUMP 15

The small end of Olin's S-Tube Stationary Pumps offer all the same great features of the larger pumps; simplicity of design, high efficiency, maintenance friendliness, great value, and after sale support that is unequalled in the industry.


Weight Dry:......................................... 4750 lbs

Length:................................................ 162"

Width:.................................................. 70"

Hopper Height:................................... 46"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Torsion 5600 lbs

Hopper Capacity:................................ 8 cu ft

Fuel Tank Capacity:............................ 23 gal

Engine:................................................ KD12504 65hp

Hydraulic Tank Capacity:................... 81 gal

Main Hydraulic Pump:....................... KPM K3VL80

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 24"

Concrete Cylinder Diameter:............ 5"

Maximum Aggregate:........................ 1"

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 38


OLINPUMP 15 45

The small end of Olin's S-Tube Stationary Pumps offer all the same great features of the larger pumps; simplicity of design, high efficiency, maintenance friendliness, great value, and after sale support that is unequalled in the industry.


Weight Dry:......................................... 4850 lbs

Length:................................................ 162"

Width:.................................................. 70"

Hopper Height:................................... 46"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Torsion 5600 lbs

Hopper Capacity:................................ 8 cu ft

Fuel Tank Capacity:............................ 23 gal

Engine:................................................ KD12504 74hp

Hydraulic Tank Capacity:................... 81 gal

Main Hydraulic Pump:....................... KPM K3VL112

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 24"

Concrete Cylinder Diameter:............ 6"

Maximum Aggregate:........................ 3/4"

Piston Head Pressure:...................... 1230 psi

Theoretical Output (C.Y.P.H.):........... 50

OLINPUMP 15-55 S-TUBE PUMP

OLINPUMP 15-55

The midsize range of Olin's S-Tube pumps not only provides a choice of size and price, but also features the same great hopper inlet and cleanout characteristics, ease in wear part access, simple electric/hydraulic circuitry, and the smoothest flow at the working end of the delivery system.


Weight Dry:......................................... 5720 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... 46"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ 8 cu ft

Fuel Tank Capacity:............................ 27 gal

Engine:................................................ JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:................... 85 gal

Main Hydraulic Pump:....................... KPM K3VL112

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 24"

Concrete Cylinder Diameter:............ 7"

Maximum Aggregate:........................ 1 1/2"

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 70

OLINPUMP 15 75 S-TUBE PUMP

OLINPUMP 15 75

The midsize range of Olin's S-Tube pumps not only provides a choice of size and price, but also features the same great hopper inlet and cleanout characteristics, ease in wear part access, simple electric/hydraulic circuitry, and the smoothest flow at the working end of the delivery system.


Weight Dry:......................................... 5850 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... 46"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ 8 cu ft

Fuel Tank Capacity:............................ 27 gal

Engine:................................................ JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:................... 85 gal

Main Hydraulic Pump:....................... KPM K3VL140

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............ 7"

Maximum Aggregate:........................ 1 1/2"

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 80

OLINPUMP 15 95 S-TUBE PUMP

OLINPUMP 15 95

The 15 95 7"delivery cylinders make them the most versatile of all larger midsize pumps. Ideal for long pushes with 1"mixes, it produces less pressure drop as it reduces to the delivery system, requiring less horsepower. The 7" cylinders also allow it to handle 50% 1/2" minus structural mixes thru 2 1/2" line for vertical walls and columns on poured in place structures, unlike it's big-name counterparts.


Weight Dry:......................................... 7700 lbs

Length:................................................ 205"

Width:.................................................. 74"

Hopper Height:................................... 52"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ 11 cu ft

Fuel Tank Capacity:............................ 39 gal

Engine:................................................ JCB EcoMAX 4.8 173hp

Hydraulic Tank Capacity:................... 95 gal

Main Hydraulic Pump:....................... KPM K3VL200

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 54"

Concrete Cylinder Diameter:............ 7"

Maximum Aggregate:........................ 1 1/2"

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 100

OLINPUMP 15 130 S-TUBE PUMP

OLINPUMP 15 130

The 15 130 is the higher output 8" cylinder version of the 15 95. It shares all the same wear parts as the 55, 75, and 95 S-Tube models except of course for the larger concrete cylinders and pistons which come from the 140 thru 220CA models.


Weight Dry:......................................... 7700 lbs

Length:................................................ 205"

Width:.................................................. 74"

Hopper Height:................................... 52"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ 11 cu ft

Fuel Tank Capacity:............................ 39 gal

Engine:................................................ JCB EcoMAX 4.8 173hp

Hydraulic Tank Capacity:................... 95 gal

Main Hydraulic Pump:....................... KPM K3VL200

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5"

Concrete Cylinder Stroke:................. 54"

Concrete Cylinder Diameter:............ 7"

Maximum Aggregate:........................ 1 1/2"

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 130

"5" SERIES - Small Line Ball Valve PUMPS

OLINPUMP 5 25 SMALL LINE BALL VALVE PUMP

OLINPUMP 5 25

The OLINPUMP 5 25 is the only 1/2” minus hydraulic Ball Valve concrete pump that is exempt of CARB and AQMD permitting. The 48 HP Deutz 3 cyl diesel engine combined with simple, efficient hydraulics, yields over 30 YPH production rates, and can push as far and as high as any pump on the market!


Weight Dry:......................................... 4100 lbs

Length:................................................ 163"

Width:.................................................. 70"

Hopper Height:................................... 51"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Torsion 5600 lbs

Hopper Capacity:................................ 6 cu ft

Fuel Tank Capacity:............................ 23 gal

Engine:................................................ KDI1903 48hp

Hydraulic Tank Capacity:................... 78 gal

Main Hydraulic Pump:....................... KMP K3VL80

Material Valve/Swing Tube:............... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 12"

Concrete Cylinder Diameter:............ 5"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 750 psi

Theoretical Output (C.Y.P.H.):........... 40


OLINPUMP 5 30

The OLINPUMP 5 30 is the more powerful version of the 5 25 with oil cooler added. Combine that with the low volumetric displacement of the cylinders and you have a lean mix, low slump tolerant machine, making it ideal for shotcreting, long pushes and larger jobs.


Weight Dry:......................................... 4300 lbs

Length:................................................ 163"

Width:.................................................. 70"

Hopper Height:................................... "

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 6 cu ft

Fuel Tank Capacity:............................ gal

Engine:................................................ KD12504 65hp

Hydraulic Tank Capacity:................... 78 gal

Main Hydraulic Pump:.......................

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... "

Concrete Cylinder Stroke:................. 12"

Concrete Cylinder Diameter:............ "

Maximum Aggregate:........................ "

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 40

OLINPUMP 5 45 SMALL LINE BALL VALVE PUMP

OLINPUMP 5 45

The OLINPUMP 5 45 is valued for its ability to pump lean, coarse mixes, without sacrificing output and smooth delivery. OLIN’s simple, dependable hydraulics and Millennium manifold mean consistent, reliable revenue every day. Go with the leader in small line pumps, OLIN PUMP.


Weight Dry:......................................... 4400 lbs

Length:................................................ 173"

Width:.................................................. 70"

Hopper Height:................................... "

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 6 cu ft

Fuel Tank Capacity:............................ 23 gal

Engine:................................................ KD12504 74hp

Hydraulic Tank Capacity:................... 81 gal

Main Hydraulic Pump:.......................

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... "

Concrete Cylinder Stroke:................. 24"

Concrete Cylinder Diameter:............ "

Maximum Aggregate:........................ "

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 50


OLINPUMP 5 60

Previously known as the 5 50, the OLINPUMP 5 60 is a high volume version of the popular 5 45, for users who require high capacity over pressure. OLIN's simple yet dependable hydraulics, coupled with the Millennium manifold, produce a combination of reliability and consistency guaranteed to bring you revenue every day.


Weight Dry:......................................... 4520 lbs

Length:................................................ 162"

Width:..................................................  70"

Hopper Height:................................... "

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 6 cu ft

Fuel Tank Capacity:............................ 23 gal

Engine:................................................

Hydraulic Tank Capacity:................... 81 gal

Main Hydraulic Pump:.......................

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... "

Concrete Cylinder Stroke:................. 24”

Concrete Cylinder Diameter:............ 6"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 750 psi

Theoretical Output (C.Y.P.H.):........... 70

OLIN 5 95 SMALL LINE BALL VALVE PUMP

OLINPUMP 5 95

The 5 80 & 95's 7" delivery cylinders combined with the Millennium Series manifold, handle both course and high sack structural 1/2" mixes, making them the perfect choice for residential, commercial, and large slurry backfill jobs.


Weight Dry:......................................... 5680 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... 51"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ 6 cu ft

Fuel Tank Capacity:............................ 27 gal

Engine:................................................ JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:................... 85 gal

Main Hydraulic Pump:....................... KPM K3VL140

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............ 7"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 100

OLINPUMP 5 110 SMALL LINE BALL VALVE PUMP

OLINPUMP 5 110

The 5 110 is the ultimate tunnel liner grout pump. Capable of pumping 1/2" structural or grout mixes, usually through 3" system, thousands of feet at high outputs, with high efficiency and minimal maintenance.


Weight Dry:......................................... 7495 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... 51"

Brakes:................................................. Electric

Tires:.................................................... 225/75 R15

Axle:..................................................... Tandem Torsion 5600 lbs

Hopper Capacity:................................ 6 cu ft

Fuel Tank Capacity:............................ 39 gal

Engine:................................................ JCB EcoMax 4.8 173hp

Hydraulic Tank Capacity:................... 95 gal

Main Hydraulic Pump:....................... KPM K3VL200

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 54"

Concrete Cylinder Diameter:............ 8"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 110

"5" SERIES - Deep Foundation Ball Valve PUMPS

OLINPUMP 5 75CA

OLINPUMP 5 75CA

The 5 75 & 100's 8" delivery cylinders combined with the Millennium Series manifold, handle high sack structural 1/2" minus & grout mixes, making them the perfect choice for Auger Cast Pile and large slurry backfill jobs.


Weight Dry:......................................... 5700 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... "

Brakes:................................................. N/A

Tires:.................................................... N/A

Axle:..................................................... N/A

Hopper Capacity:................................  10 cu ft

Fuel Tank Capacity:............................ 27 gal

Engine:................................................ JCB EcoMAX 4.4 108hp

Hydraulic Tank Capacity:................... 89 gal

Main Hydraulic Pump:....................... KPM K3VL140

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 24"

Concrete Cylinder Diameter:............ 8"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 104

OLINPUMP 5 100CA

OLINPUMP 5 100CA

The 5 75 & 100's 8" delivery cylinders combined with the Millennium Series manifold, handle high sack structural 1/2" minus & grout mixes, making them the perfect choice for Auger Cast Pile and large slurry backfill jobs.


Weight Dry:......................................... 6130 lbs

Length:................................................ 175"

Width:.................................................. 70"

Hopper Height:................................... 57"

Brakes:................................................. N/A

Tires:.................................................... 236/80 R16

Axle:..................................................... Torsion 7000 lbs

Hopper Capacity:................................ 9 cu ft

Fuel Tank Capacity:............................ 27 gal

Engine:................................................ JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:................... 89 gal

Main Hydraulic Pump:....................... KPM K3VL140

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............ 8"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 130

OLINPUMP 5 140CA

OLINPUMP 5 140CA

The 5 140 & 170's 8" delivery cylinders combined with the Millennium Series manifold, deliver the most efficiency of any auger cast pile pump on the market. No other pumps perform anywhere close to the OLINPUMP grout pumps. Efficiency, output, low maintenance and smooth delivery with no surge, make it the highest value pump available.


Weight Dry:......................................... 7800 lbs

Length:................................................ 204"

Width:.................................................. 70"

Hopper Height:................................... 57"

Brakes:.................................................  N/A

Tires:.................................................... 235/80 R16

Axle:..................................................... Tandem Torsion 7000 lbs

Hopper Capacity:................................ 9 cu ft

Fuel Tank Capacity:............................ 39 gal

Engine:................................................ JCB EcoMAX4.8 173hp

Hydraulic Tank Capacity:................... 95 gal

Main Hydraulic Pump:....................... KPM K3VL200

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... 4"

Concrete Cylinder Stroke:................. 54"

Concrete Cylinder Diameter:............ 8"

Maximum Aggregate:........................ 1/2"

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 140

OLINPUMP 5 200CA

OLINPUMP 5 200CA

The 5 200CA was initially designed in 2013 to meet the increasing needs of OLINPUMP's largest CFA Pile Deep Foundation customers. Auger Cast Deep Foundation Pumps are a high volume pump with a smooth flow.


Weight Dry:......................................... 9000 lbs

Length:................................................ 204"

Width:.................................................. 70"

Hopper Height:................................... "

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ cu ft

Fuel Tank Capacity:............................ 90 gal

Engine:................................................

Hydraulic Tank Capacity:................... 99 gal

Main Hydraulic Pump:.......................

Material Valve:.................................... Ball

Discharge Diameter Outlet:............... "

Concrete Cylinder Stroke:................. 54"

Concrete Cylinder Diameter:............  "

Maximum Aggregate:........................ "

Piston Head Pressure:...................... 900 psi

Theoretical Output (C.Y.P.H.):........... 200
