Mayco / MultiQuip Pumps

Mayco / MultiQuip Pumps are the premier name in concrete pumping and the industry standard for more than 40 years. Designed to increase productivity and maximize profits, let Action Concrete Pumping Supply provide you with the pump you need to get the job done


For more information and a complete description of the pumps we offer by MAYCO / MULTIQUIP, please click on the links below.


C30HDG - Grout & Concrete Pump

C30HDGWR - Grout & Concrete Pump

LS300G - Grout & Concrete Pump

LS400 - Shotcrete, Masonry Block Fill, Slabs, Footings, Basements & Compaction Grouting

LS450 - Shotcrete, Masonry Block Fill, Slabs, Footings, Basements & Compaction Grouting

LS500 - Shotcrete, Masonry Block Fill, Slabs, Footings, Basements & Compaction Grouting

LS600P - Shotcrete, Masonry Block Fill, Slabs, Footings, Basements & Compaction Grouting

MultiQuip C30HDG

Mayco / MultiQuip C30HDG

The C30HDG grout & concrete pump offers uncompromising engine performance with excellent fuel efficiency in a quiet, smooth pumping package.


KEY FEATURES

• Pumps up to 25 cubic yards (19 cubic meters) per hour

• Maximum aggregate size of 1/2-inch minus (12 mm)

• 5 0-hp (37.2 kW) fuel-injected Zenith gasoline engine ensures quiet, efficient performance

• Standard 2-function 125-foot (37.5 meters) hardwired remote. Multi-function radio remote with full volume control and 1,000 foot (300 meters) operating range (Optional).

• Fully-enlclosed piston lubrication box and central lubrication grease station.

• Standard equipment includes a 3-inch (76 mm) x 90 degree pipe elbow, 3 x 2 x 28-inch reducer, and two 3-inch couplings (all raised ends)

• Excellent choice for small-aggregate concrete pumping, masonry grout, shotcrete, pressure grouting, and more


Weight Dry:......................................... 178 lbs

Length:................................................ 12’

Width:.................................................. 59”

Hopper Height:...................................

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 6 ft³

Fuel Tank Capacity:............................

Engine:................................................ Gasoline

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ .5”

Piston Head Pressure:...................... 500 psi

Theoretical Output (C.Y.P.H.):........... 25

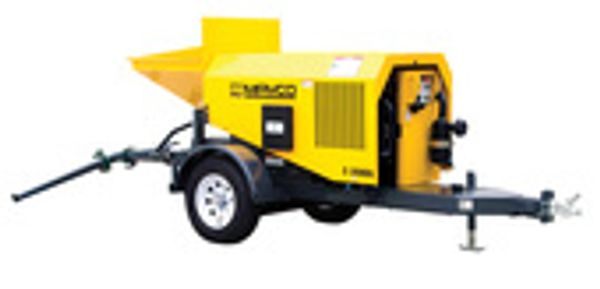

MULTIQUIP C30HDGWR

Mayco / MultiQuip C30HDGWR

The C30HDG grout & concrete pump offers uncompromising engine performance with excellent fuel efficiency in a quiet, smooth pumping package.


KEY FEATURES

• Pumps up to 25 cubic yards (19 cubic meters) per hour.

• Maximum aggregate size of 1/2-inch minus (12 mm).

• 50-hp (37.2 kW) fuel-injected Zenith gasoline engine ensures quiet, efficient performance

• Multi-function radio remote with full volume control and 1,000-foot (300 meters) operating range.

• Fully-enlclosed piston lubrication box and central lubrication grease station.

• Standard equipment includes a 3-inch (76 mm) x 90 degree pipe elbow, 3 x 2 x 28-inch reducer, and two 3-inch couplings (all raised ends)

• Excellent choice for small-aggregate concrete pumping, masonry grout, shotcrete, pressure grouting, and more


Weight Dry:......................................... 178 lbs

Length:................................................ 12’

Width:.................................................. 59”

Hopper Height:...................................

Brakes:.................................................

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 6 ft³

Fuel Tank Capacity:............................

Engine:................................................ Gasoline

Hydraulic Tank Capacity:...................

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ .5”

Piston Head Pressure:...................... 500 psi

Theoretical Output (C.Y.P.H.):........... 25

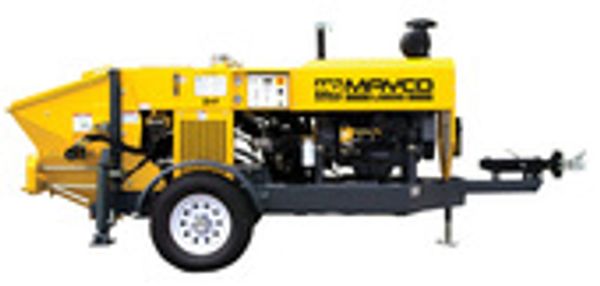

MULTIQUIP LS300G

Mayco / MultiQuip LS300G

Filling a niche that has been neglected, the Mayco / MultiQuip LS300G Concrete Pump has the versatility to efficently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 24" stroke ensures that the LS300G will smoothly pump even low slump concrete mix designs.


Mayco / MultiQuip's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner. The powerful Zenith Z428 gasoline engine helps put meaningful working force behind the LS300G's 800 psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco / MultiQuip LS300G Concrete Pump is the true value choice for contractors who need performance without breaking the bank.


KEY FEATURES

• Concrete piston face pressure of 800 PSI (55 Bar)

• Concrete cylinder diameter is 6 inches (152 mm) with 24-inch stroke (609 mm)

• Powered by a 71.2 (53 kW) Zenith gasoline engine naturally aspirated

• Designed for aggregate sized up to 1-1/2 inches (38 mm)

• True Reverse allows stroke change during any point in the pumping cycle

• Hard faced wear components for longer life

• Variable volume output (from the control panel) from 0-to-30 cubic yards (22.9 cubic meters) per hour

• Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, & compaction grouting

• Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring

• Optional wireless radio remote has a range of 500 feet (153 meters) • Optional rear hydraulic outriggers

• Optional air or electric vibrators for hopper screen


Weight Dry:......................................... 3855 lbs

Length:................................................ 155”

Width:.................................................. 67”

Hopper Height:................................... 43”

Brakes:................................................. Hydraulic Surge

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 10 ft

Fuel Tank Capacity:............................ 16 gal

Engine:................................................ Gasoline

Hydraulic Tank Capacity:................... 33 gal

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ 1.5”

Piston Head Pressure:...................... 800 psi

Theoretical Output (C.Y.P.H.):........... 30

MULTIQUIP LS400

Mayco / MultiQuip LS400

Filling a niche that has been neglected, the Mayco / MultiQuip LS400 Concrete Pump has the versatility to efficiently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS400 will smoothly pump even low slump concrete mix designs.


Mayco  / MultiQuip's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.


The powerful Deutz 77hp diesel engine helps put meaningful working force behind the LS400's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco / MultiQuip LS400 Concrete Pump is the true value choice for contractors who need performance without breaking the bank.


KEY FEATURES

• Concrete piston face pressure of 1100 PSI (76 Bar) • Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)

• Horizontal pumping distance of 1000 feet (300 meters), vertical is 300 feet (91 meters)

• Powered by a 77-hp (57.4 kW) Deutz BF4L2011 turbo diesel

• Designed for aggregate sized up to 1-1/2 inches (38 mm)

• Hopper remixer/agitator standard

• True Reverse allows stroke change during any point in the pumping cycle • Hard faced wear components for longer life

• Variable volume output (from the control panel) from 0-to-40 cubic yards (30 cubic meters) per hour

• Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, & compaction grouting

• Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring

• Optional wireless radio remote has a range of 1000 feet (300 meters)

• Optional rear hydraulic outriggers

• Optional air or electric vibrators for hopper screen


Weight Dry:......................................... 4860 lbs

Length:................................................ 1573”

Width:.................................................. 68”

Hopper Height:................................... 43”

Brakes:................................................. Hydraulic Surge

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 10 ft

Fuel Tank Capacity:............................ 40 gal

Engine:................................................ Diesel

Hydraulic Tank Capacity:................... 58 gal

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ 1.5”

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 40

MULTIQUIP LS450

Mayco / MultiQuip LS450

Filling a niche that has been neglected, the Mayco / MultiQuip LS450 Concrete Pump has the versatility to efficently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS450 will smoothly pump even low slump concrete mix designs.


Mayco / MultiQuip's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.


The powerful Hatz 74.5 diesel engine helps put meaningful working force behind the LS450's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco / MultiQuip LS450 Concrete Pump is the true value choice for contractors who need performance without breaking the bank.


KEY FEATURES

• Concrete piston face pressure of 1100 PSI (76 Bar)

• Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)

• Powered by a 74.5 (55.5 kW) Hatz 4H50 turbo diesel

• Designed for aggregate sized up to 1-1/2 inches (38 mm)

• Hopper remixer/agitator standard

• True Reverse allows stroke change during any point in the pumping cycle

• Hard faced wear components for longer life

• Variable volume output (from the control panel) from 0-to-45 cubic yards (34.4 cubic meters) per hour

• Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, & compaction grouting

•Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring

• Optional wireless radio remote has a range of 500 feet (153 meters)

• Optional rear hydraulic outriggers

• Optional air or electric vibrators for hopper screen


Weight Dry:......................................... 5115 lbs

Length:................................................ 172”

Width:.................................................. 67”

Hopper Height:................................... 43”

Brakes:................................................. Hydraulic Surge

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 10 ft

Fuel Tank Capacity:............................ 40 gal

Engine:................................................ Diesel

Hydraulic Tank Capacity:................... 50 gal

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ 1.5”

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 45

MULTIQUIP LS500

Mayco / MultiQuip LS500

The "Workhorse" for most hard-rock applications.

Filling a niche that has been neglected, the Mayco / MultiQuip LS500 Concrete Pump has the versatility to efficiently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS500 will smoothly pump even low slump concrete mix designs.


Mayco / MultiQuip's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.


The powerful Deutz 77hp diesel engine helps put meaningful working force behind the LS500's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco / MultiQuip LS500 Concrete Pump is the true value choice for contractors who need performance without breaking the bank.


KEY FEATURES

• Concrete piston face pressure of 1100 PSI (76 Bar)

• Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)

• Horizonal pumping distance of 1000 feet (300 meters), vertical is 300 feet (91 meters)

• Powered by a 77-hp (57.4 kW) Deutz BF4L2011 turbo diesel

• Designed for aggregate sized up to 1-1/2 inches (38 mm)

• Hopper remixer/agitator standard

• True Reverse allows stroke change during any point in the pumping cycle

• Hard faced wear components for longer life

• Variable volume output (from the control panel) from 0-to-50 cubic yards (38 cubic meters) per hour

• Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, & compaction grouting

• Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring

• Optional wireless radio remote has a range of 1000 feet (300 meters)

• Optional rear hydraulic outriggers

• Optional air or electric vibrators for hopper screen


Weight Dry:......................................... 4870 lbs

Length:................................................ 173”

Width:.................................................. 68”

Hopper Height:................................... 43”

Brakes:................................................. Hydraulic Surge

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 10 ft

Fuel Tank Capacity:............................ 40 gal

Engine:................................................ Diesel

Hydraulic Tank Capacity:................... 58 gal

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ 1.5”

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 50

MULTIQUIP LS600P

Mayco / MultiQuip LS600P

Filling a niche that has been neglected, the Mayco / MultiQuip LS600P has the versatility to efficiently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS600P will smoothly pump even low slump concrete mix designs.


Mayco / MultiQuip's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.


The powerful Perkins 108HP diesel engine helps put meaningful working force behind the LS600P's 1,100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco / MultiQuip LS600P is the true value choice for contractors who need performance without breaking the bank.


KEY FEATURES

• Concrete piston face pressure of 1100 PSI (76 Bar)

• Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)

• Horizonal pumping distance of 1000 feet (300 meters), vertical is 300 feet (91 meters)

• Powered by a 108HP Perkins 1104D Turbo Diesel

• Designed for aggregate sized up to 1-1/2 inches (38 mm)

• Hopper remixer/agitator standard

• True Reverse allows stroke change during any point in the pumping cycle

• Hard faced wear components for longer life

• Variable volume output (from the control panel) from 0-to-60 cubic yards (46 cubic meters) per hour

• Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, decks, & compaction grouting

• Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring

• Optional wireless radio remote has a range of 1000 feet (300 meters)

• Optional rear hydraulic outriggers

• Optional air or electric vibrators for hopper screen


Weight Dry:......................................... 5290 lbs

Length:................................................ 173”

Width:.................................................. 68”

Hopper Height:................................... 42

Brakes:................................................. Hydraulic Surge

Tires:....................................................

Axle:.....................................................

Hopper Capacity:................................ 42”

Fuel Tank Capacity:............................ 40 gal

Engine:................................................ Diesel

Hydraulic Tank Capacity:................... 58 gal

Main Hydraulic Pump:.......................

Material Valve/Swing Tube:...............

Discharge Diameter Outlet:...............

Concrete Cylinder Stroke:.................

Concrete Cylinder Diameter:............

Maximum Aggregate:........................ 1.5”

Piston Head Pressure:...................... 1100 psi

Theoretical Output (C.Y.P.H.):........... 60
