Reinert Pumps

For over 45 Reinert has been building concrete  grout and masonry pumps that are long-lasting and easy to use. In keeping with todays’ requirements, we have continually improved our products with numerous innovative patents. Our goal is to proudly manufacture high quality pumps that are affordable, reliable and easy to use while providing high quality support and expertise for our valued customers and we are here to make sure that the product you receive is the best it can possibly be..


Reinert pumps are built to last, engineered to keep it simple and get the job done. We are here to make sure that the product you receive is the best is can possibly be.


Whether you are looking for concrete pumps, grout pumps, masonry pumps, or wear parts you can find it all at Action Concrete Pumping Supply. All models of Reinert concrete, grout and masonry pumps feature a patented Hinge Valve, giving you easy access for inspection of the valve cups and material cylinders.


(See Reinert Pump Performance Demonstration Video Below)


For more information and a complete description of the pumps we offer by REINERT, please click on the links below.


"ZR" Series

• ZR-430

• REINERT ZR-318


"XR" Series

• XR-536

• XR-636

• XR-642


"GP" Series

• GP-736

• GP-742

• GP-748


Only Reinert Offers The E-Z Hinge

The amazing Reinert E-Z Hinge is a real breakthrough in concrete pump operation. Because clean-up is an essential part of any concrete project, when you can make that step go faster and easier, think of what you'll save in time, labor and money. The same is true for any maintenance or inspection needed on th S-Tube. Also, improved clean-out just naturally extends the life of your pump and helps assure smooth operation. It all adds up to more reasons for choosing Reinert!


Action Concrete Pump AZ - KTR Project

Reinert Concrete Performance

REINERT "ZR" Series

REINERT ZR-430

REINERT ZR-430

The Hinge Valve is standard equipment on all Reinert S-Tube pumps. A variable volume piston pump and a convenient remote control cable are also standard features. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and minimum material build-up. An optional radio remote control is also available.


DETAILS: Reinert trailer-mounted masonry pumps are diesel-powered and range from 6 cyph to 36 cyph. These pumps are designed to be used with grout or pea-rock mixes. Ideal for block-filling, pumping small slabs and footers, these tough but lightweight units are made for easy towing. When you need a dependable, long-lasting pump, trust Reinert.


HINGE VALVE: Reinert Masonry Pumps are built with the patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. When in the open position, our Hinge Valve gives you access to the inside of the S-Tube. This also makes the piston cups visible and easy to change. When clean-up and maintenance go faster and easier, you save time, labor, and money.

Weight Dry:......................................... 3100 lbs.

Length:................................................ 150"

Width:.................................................. 64"

Hopper Height:................................... 43"

Brakes:................................................. Electric

Tires:.................................................... 15"

Axle:..................................................... Single

Hopper Capacity:................................ 8 cu. ft.

Fuel Tank Capacity:............................ 15 gal

Diesel Engine:..................................... 32.5 HP

Hydraulic Tank Capacity:................... 44 gal

Main Hydraulic Pump:....................... Piston

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 4”

Concrete Cylinder Stroke:................. 30”

Concrete Cylinder Diameter:............ 4”

Maximum Aggregate:........................ 3/4” minus

Piston Head Pressure:...................... 650

Theoretical Output (C.Y.P.H.):.......... 20


Our Masonry Pumps are built with an S-Tube valve instead of a mechanical ball valve, reducing your maintenance time. A reverse cycle and our Hinge Valve are standard features. An excellent choice for block-filling, small slab pours and pan stairs.

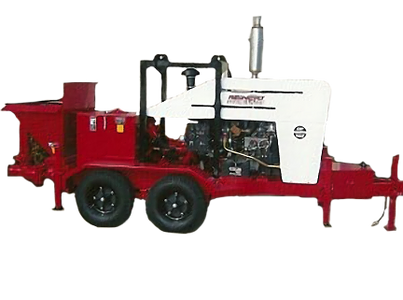

REINERT ZR-318

REINERT ZR-318

The Hinge Valve is standard equipment on all Reinert S-Tube pumps. A variable volume piston pump and a convenient remote control cable are also standard features. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and minimum material build-up. An optional radio remote control is also available.


DETAILS: Reinert trailer-mounted masonry pumps are diesel-powered and range from 6 cyph to 36 cyph. These pumps are designed to be used with grout or pea-rock mixes. Ideal for block-filling, pumping small slabs and footers, these tough but lightweight units are made for easy towing. When you need a dependable, long-lasting pump, trust Reinert.


HINGE VALVE: Reinert Masonry Pumps are built with the patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. When in the open position, our Hinge Valve gives you access to the inside of the S-Tube. This also makes the piston cups visible and easy to change. When clean-up and maintenance go faster and easier, you save time, labor, and money.


Weight Dry:......................................... 5000 lbs.

Length:................................................ 172”

Width:.................................................. 72”

Hopper Height:................................... 57”

Brakes:................................................. Electric

Tires:.................................................... 15"

Axle:..................................................... Dual

Hopper Capacity:................................ 8 cu. ft.

Fuel Tank Capacity:............................ 15 gal

Diesel Engine:..................................... 32.5 HP

Hydraulic Tank Capacity:................... 45 gal

Main Hydraulic Pump:....................... Piston

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 3”

Concrete Cylinder Stroke:................. 18”

Concrete Cylinder Diameter:............ 3”

Maximum Aggregate:........................ 1/2” minus

Piston Head Pressure:...................... 1500

Theoretical Output (C.Y.P.H.):.......... 6-10


Our Masonry Pumps are built with an S-Tube valve instead of a mechanical ball valve, reducing your maintenance time. A reverse cycle and our Hinge Valve are standard features. An excellent choice for block-filling, small slab pours and pan stairs.

REINERT XR Series

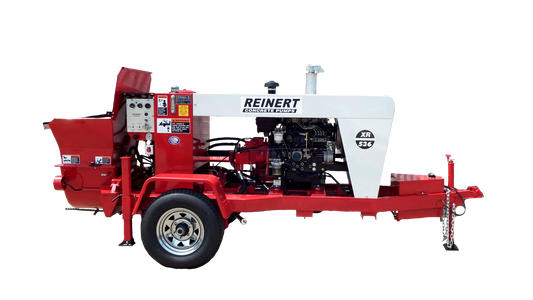

REINERT XR-536

REINERT XR-536

All Reinert S-Tube Concrete Pumps include the Hinge Valve as standard equipment. Other standard features include a variable volume piston pump and a convenient remote control cable. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and little build-up. An optional radio remote control is available. Select models also include an optional remixer.


DETAILS: Reinert trailer-mounted Concrete Pumps are diesel-powered and range from 20 cyph to 60 cyph. These pumps are designed for shotcrete, pea-rock and structural mix pumping. Reinert pumps are ideal for pumping small slabs, multi-story slabs, block-filling, and shotcrete. For the best performance and value in concrete pumps, trust Reinert.


HINGE VALVE: The Reinert S-Tube Concrete and pea-rock pumps are built with our patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. The Hinge Valve, when in the open position, gives you access to the inside of the S-Tube. The piston cups are also visible and easy to change. When clean-up and maintenance go faster and easier, you will save time, labor, and money.


Weight Dry:......................................... 4,000 lbs.

Length:................................................ 162"

Width:.................................................. 70"

Hopper Height:................................... 48"

Brakes:................................................. Electric

Tires:.................................................... 15"

Axle:..................................................... Single

Hopper Capacity:................................ 8 cu. ft.

Fuel Tank Capacity:............................ 15 gal

Diesel Engine:..................................... 60 HP/80 HP

Hydraulic Tank Capacity:................... 65 gal

Main Hydraulic Pump:....................... Piston

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5”

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............. 5"

Maximum Aggregate:......................... 1" minus

Piston Head Pressure:.......................  9/11

Theoretical Output (C.Y.P.H.):........... 36


Our specialty is small line trailer-mounted concrete pumps. Featuring our innovative Hinge Valve on all models. Whether you’re thinking about a low volume or high volume concrete pump, learn more about your choices.

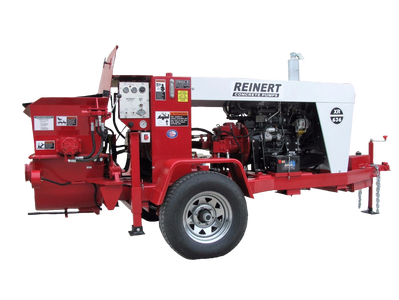

REINERT XR-636

REINERT XR-636

All Reinert S-Tube Concrete Pumps include the Hinge Valve as standard equipment. Other standard features include a variable volume piston pump and a convenient remote control cable. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and little build-up. An optional radio remote control is available. Select models also include an optional remixer.


DETAILS: Reinert trailer-mounted Concrete Pumps are diesel-powered and range from 20 cyph to 60 cyph. These pumps are designed for shotcrete, pea-rock and structural mix pumping. Reinert pumps are ideal for pumping small slabs, multi-story slabs, block-filling, and shotcrete. For the best performance and value in concrete pumps, trust Reinert.


HINGE VALVE: The Reinert S-Tube Concrete and pea-rock pumps are built with our patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. The Hinge Valve, when in the open position, gives you access to the inside of the S-Tube. The piston cups are also visible and easy to change. When clean-up and maintenance go faster and easier, you will save time, labor, and money.


Weight Dry:......................................... 4,300 lbs.

Length:................................................ 162"

Width:.................................................. 70"

Hopper Height:...................................  48"

Brakes:................................................. Electric

Tires:.................................................... 15"

Axle:..................................................... Single

Hopper Capacity:................................ 9 cu. ft.

Fuel Tank Capacity:............................ 15 gal

Diesel Engine:..................................... 80 HP

Hydraulic Tank Capacity:................... 65 gal

Main Hydraulic Pump:....................... Piston

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5”

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............. 6”

Maximum Aggregate:......................... 1" minus

Piston Head Pressure:....................... 800 psi

Theoretical Output (C.Y.P.H.):........... 50


Our specialty is small line trailer-mounted concrete pumps. Featuring our innovative Hinge Valve on all models. Whether you’re thinking about a low volume or high volume concrete pump, learn more about your choices.

REINERT XR-642

REINERT XR-642

All Reinert S-Tube Concrete Pumps include the Hinge Valve as standard equipment. Other standard features include a variable volume piston pump and a convenient remote control cable. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and little build-up. An optional radio remote control is available. Select models also include an optional remixer.


DETAILS: Reinert trailer-mounted Concrete Pumps are diesel-powered and range from 20 cyph to 60 cyph. These pumps are designed for shotcrete, pea-rock and structural mix pumping. Reinert pumps are ideal for pumping small slabs, multi-story slabs, block-filling, and shotcrete. For the best performance and value in concrete pumps, trust Reinert.


HINGE VALVE: The Reinert S-Tube Concrete and pea-rock pumps are built with our patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. The Hinge Valve, when in the open position, gives you access to the inside of the S-Tube. The piston cups are also visible and easy to change. When clean-up and maintenance go faster and easier, you will save time, labor, and money.


Weight Dry:......................................... 4,500 lbs.

Length:................................................ 175”

Width:.................................................. 70"

Hopper Height:................................... 48"

Brakes:................................................. Electric

Tires:.................................................... 15"

Axle:..................................................... Single

Hopper Capacity:................................ 9 cu. ft.

Fuel Tank Capacity:............................ 15 gal

Diesel Engine:..................................... 80 HP

Hydraulic Tank Capacity:................... 65 gal

Main Hydraulic Pump:....................... Piston

Material Valve/Swing Tube:............... S-Tube

Discharge Diameter Outlet:............... 5”

Concrete Cylinder Stroke:................. 42”

Concrete Cylinder Diameter:............ 6”

Maximum Aggregate:........................ 1" minus

Piston Head Pressure:....................... 800

Theoretical Output (C.Y.P.H.):...........  60


Our specialty is small line trailer-mounted concrete pumps. Featuring our innovative Hinge Valve on all models. Whether you’re thinking about a low volume or high volume concrete pump, learn more about your choices.

REINERT "GP" Series

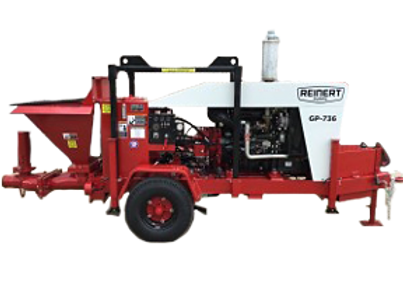

REINERT GP-736

REINERT GP-736

Each pump is equipped with a mechanical stroke counter to calculate the amount of grout being pumped per stroke. Chrome plated reversible material cylinders and oil cooler are standard equipment. Our mechanical cycle system eliminates any electrical problems. An optional lifting bale for loading and unloading purposes is also available.


DETAILS: Our grout pumps are specifically designed for the auger cast pile contractor. These heavy duty pumps are built for auger cast applications and high volume grouting jobs. Reinert Grout Pumps are diesel-powered and range from 70 cyph to 90 cyph. If you need a dependable grout pump, trust Reinert; we've been making grout pumps for over 40 years.


BALL VALVE ASSEMBLY: The Reinert Y-Assembly hinges away for additional clean-up and discharge ball inspection. In addition, the hopper hinges away for inlet ball inspection and maintenance. The piston cups are accessible from the hinged valve assembly for easy replacement. Our pumps are just simpler and more economical to operate.

Weight Dry:......................................... 5000 lbs.

Length:................................................ 172”

Width:.................................................. 58”

Hopper Height:................................... 56”

Brakes:................................................. Electric

Tires:.................................................... 14.5 x 900”

Axle:..................................................... Single

Hopper Capacity:................................ 9.5 cu. ft.

Fuel Tank Capacity:............................ 20 gal

Diesel Engine:..................................... 122 HP - Diesel

Hydraulic Tank Capacity:................... 97 gal

Main Hydraulic Pump:....................... Vane

Material Valve/Swing Tube:............... Ball & Seat

Discharge Diameter Outlet:............... 5”

Concrete Cylinder Stroke:................. 36"

Concrete Cylinder Diameter:............. 7”

Maximum Aggregate:......................... 3/8” minus

Piston Head Pressure:....................... 800

Theoretical Output (C.Y.P.H.):............ 70


Reinert Grout Pumps are 100% hydraulically operated. No electric is necessary to operate our pumps, providing you with reliable, simple power for pumping your grout applications and auger cast piles.

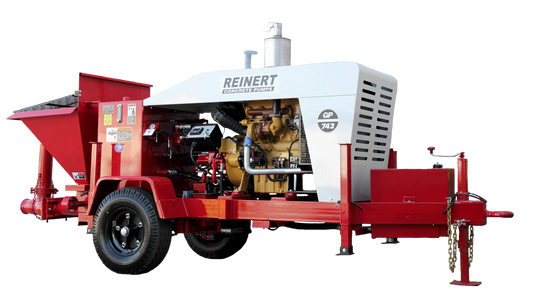

REINERT GP-742

REINERT GP-742

Each pump is equipped with a mechanical stroke counter to calculate the amount of grout being pumped per stroke. Chrome plated reversible material cylinders and oil cooler are standard equipment. Our mechanical cycle system eliminates any electrical problems. An optional lifting bale for loading and unloading purposes is also available.


DETAILS: Our grout pumps are specifically designed for the auger cast pile contractor. These heavy duty pumps are built for auger cast applications and high volume grouting jobs. Reinert Grout Pumps are diesel-powered and range from 70 cyph to 90 cyph. If you need a dependable grout pump, trust Reinert; we've been making grout pumps for over 40 years.


BALL VALVE ASSEMBLY: The Reinert Y-Assembly hinges away for additional clean-up and discharge ball inspection. In addition, the hopper hinges away for inlet ball inspection and maintenance. The piston cups are accessible from the hinged valve assembly for easy replacement. Our pumps are just simpler and more economical to operate.


Weight Dry:......................................... 5000 lbs.

Length:................................................ 172”

Width:.................................................. 58”

Hopper Height:................................... 56”

Brakes:................................................. Electric

Tires:.................................................... 14.5 x 900”

Axle:..................................................... Single

Hopper Capacity:................................ 9.5 cu. ft.

Fuel Tank Capacity:............................ 20 gal

Diesel Engine:..................................... 122 HP - Diesel

Hydraulic Tank Capacity:................... 97 gal

Main Hydraulic Pump:....................... Vane

Material Valve/Swing Tube:............... Ball & Seat

Discharge Diameter Outlet:............... 5”

Concrete Cylinder Stroke:.................. 42”

Concrete Cylinder Diameter:............. 7”

Maximum Aggregate:......................... 3/8” minus

Piston Head Pressure:....................... 800

Theoretical Output (C.Y.P.H.):............ 70


Reinert Grout Pumps are 100% hydraulically operated. No electric is necessary to operate our pumps, providing you with reliable, simple power for pumping your grout applications and auger cast piles.


REINERT GP-748

Each pump is equipped with a mechanical stroke counter to calculate the amount of grout being pumped per stroke. Chrome plated reversible material cylinders and oil cooler are standard equipment. Our mechanical cycle system eliminates any electrical problems. An optional lifting bale for loading and unloading purposes is also available.


DETAILS: Our grout pumps are specifically designed for the auger cast pile contractor. These heavy duty pumps are built for auger cast applications and high volume grouting jobs. Reinert Grout Pumps are diesel-powered and range from 70 cyph to 90 cyph. If you need a dependable grout pump, trust Reinert; we've been making grout pumps for over 40 years.


BALL VALVE ASSEMBLY: The Reinert Y-Assembly hinges away for additional clean-up and discharge ball inspection. In addition, the hopper hinges away for inlet ball inspection and maintenance. The piston cups are accessible from the hinged valve assembly for easy replacement. Our pumps are just simpler and more economical to operate.


Weight Dry:......................................... 6200 lbs.

Length:................................................  220”

Width:.................................................. 70"

Hopper Height:................................... 58”

Brakes:................................................. Electric

Tires:.................................................... 14.5 x 900”

Axle:..................................................... Dual

Hopper Capacity:................................  9.5 cu. ft.

Fuel Tank Capacity:............................ 37 gal

Diesel Engine:..................................... 175 HP

Hydraulic Tank Capacity:................... 142 gal

Main Hydraulic Pump:....................... (2) Vane

Material Valve/Swing Tube:............... Ball & Seat

Discharge Diameter Outlet:............... 5”

Concrete Cylinder Stroke:.................. 48”

Concrete Cylinder Diameter:............. 7”

Maximum Aggregate:......................... 3/8” minus

Piston Head Pressure:....................... 800

Theoretical Output (C.Y.P.H.):............ 90


Reinert Grout Pumps are 100% hydraulically operated. No electric is necessary to operate our pumps, providing you with reliable, simple power for pumping your grout applications and auger cast piles.
