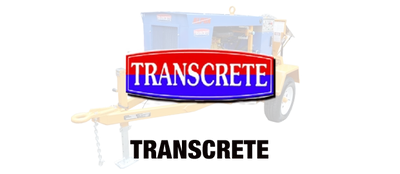

Transcrete Pumps
Transcrete was first involved in the industry in 1967 when concrete pumping was a totally new concept of moving concrete from Transit trucks to formwork through a 100 mm pipeline. Not much was known about the concrete mix designs or pressures required to pump concrete. The first Transcrete concrete pump was designed and manufactured in 1968.
By the early 1970s Transcrete was engineering standard line pump production models. In 1974 Transcrete mounted pump were completely new and unique with a “one piece” concrete valve, which Transcrete called an “S-tube” valve. The “S-tube” eliminated over 35 moving parts, two wear parts instead of 12 wear parts. Wear part costs were reduced by $ thousands.
Transcrete’s experience in concrete and mechanical engineering was a great help in designing a concrete pump to solve the problem. That is why Transcrete pumps are the World’s Best. We were there from the start and others followed. A Transcrete concrete pump will outperform any other brand on the market … offer higher resale valve and perform to specification.
For more information and a complete description of the pumps we offer by TRANSCRETE, please click on the category links below.
• P10 - S-Tube Concrete Pump
• P20 - S-Tube Concrete Pump
• P25 - S-Tube Concrete Pump
• P35 - S-Tube Concrete Pump
• P35-HP - S-Tube Concrete Pump
• P40 - Harsh Low Slump Mixes Pump
• P50 - Harsh Low Slump Mixes Pump
• P60 - Harsh Low Slump Mixes Pump
• P60-HP - Harsh Low Slump Mixes Pump
• P70 - Harsh Low Slump Mixes Pump
Shotcrete Trailer Mounted Concrete Pumps
• P10 - S-Tube Concrete Pump
• P25 - S-Tube Concrete Pump
• P40 - S-Tube Concrete Pump
• P60JP - S-Tube Concrete Pump
• P70 - S-Tube Concrete Pump
Alpha Pump Series
Alpha Pump Series P10
The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. Mechanical ball valve pumps were experiencing difficulties pumping the harsher concrete mixes now being produced. Due to popular demands for a smaller compact high pressure pump, the Alpha has developed into a wide output range from 10 cubic meters per hour to 30 Cubic meters per hour.
Weight Dry:............................................ 1250 kg
Length:................................................... 3500 mm
Width:.................................................... 1600 mm
Height:................................................... 1600 mm
Hopper Height:...................................... 400 mm
Fuel Tank Capacity:............................... 60 liter with level gauge
Hopper Outlet:...................................... 75 mm
Hopper Capacity:.................................. 200 liter
Hydraulic Tank Capacity:..................... 160 liter with inspection hatch
Hydraulic Cylinder Size:....................... 65 mm bore x 100 mm stroke x 27 mm rod
S-tube Casting Size:.............................. 75 x 75
Variable Volume Control:..................... Yes
Maximum strokes per minute:............. 40
Hydraulic Cylinder Size:....................... 7 mm bore with 40 mm rods
Concrete Cylinder Stroke:................... 610 mm
Concrete Cylinder Diameter:.............. 75 mm
Maximum Aggregate:.......................... 10 mm
Piston Head Pressure:......................... 300 bar
Theoretical Output (C.Y.P.H.):............. 6M3
Alpha Pump Series P20
The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. Mechanical ball valve pumps were experiencing difficulties pumping the harsher concrete mixes now being produced. Due to popular demands for a smaller compact high pressure pump, the Alpha has developed into a wide output range from 10 cubic meters per hour to 30 Cubic meters per hour.
Weight Dry:............................................ 1450 kg
Length:.................................................. 3600 mm
Width:.................................................... 1600 mm
Height:................................................... 1600 mm
Hopper Height:...................................... 500 mm
Fuel Tank Capacity:............................... 60 liter with level gauge
Hopper Outlet:...................................... 100 mm
Hopper Capacity:.................................. 300 liter
Hydraulic Tank Capacity:..................... 160 liter with inspection hatch
Hydraulic Cylinder Size:....................... 65 mm bore x 100 mm stroke x 27 mm rod
S-tube Casting Size:.............................. 115 x 100
Variable Volume Control:..................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 7 mm bore with 40 mm rods
Concrete Cylinder Stroke:.................. 610 mm
Concrete Cylinder Stroke:.................. 610 mm
Maximum Aggregate:......................... 16 mm
Piston Head Pressure:........................ 150 bar
Theoretical Output (C.Y.P.H.):............ 14M3
Alpha Pump Series P25
The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. Mechanical ball valve pumps were experiencing difficulties pumping the harsher concrete mixes now being produced. Due to popular demands for a smaller compact high pressure pump, the Alpha has developed into a wide output range from 10 cubic meters per hour to 30 Cubic meters per hour.
Weight Dry:........................................... 1700 kg
Length:.................................................. 4000 mm
Width:................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:.................................... 500 mm
Fuel Tank Capacity:............................. 60 liter with level gauge
Hopper Outlet:.................................... 100 mm
Hopper Capacity:................................ 300 liter
Hydraulic Tank Capacity:.................... 160 liter with inspection hatch
Hydraulic Cylinder Size:...................... 65 mm bore x 100 mm stroke x 27 mm rod
S-tube Casting Size:............................. 115 x 100
Variable Volume Control:.................... No
Maximum strokes per minute:............ 30
Hydraulic Cylinder Size:...................... 7 mm bore with 40 mm rods
Concrete Cylinder Stroke:................... 915 mm
Concrete Cylinder Diameter:.............. 127 mm
Maximum Aggregate:.......................... 20 mm
Piston Head Pressure:........................ 100 bar
Theoretical Output (C.Y.P.H.):............. 18M3
Alpha Pump Series P35
The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. Mechanical ball valve pumps were experiencing difficulties pumping the harsher concrete mixes now being produced. Due to popular demands for a smaller compact high pressure pump, the Alpha has developed into a wide output range from 10 cubic meters per hour to 30 Cubic meters per hour.
Weight Dry:.......................................... 1700 kg
Length:................................................. 4000 mm
Width:................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:.................................... 600 mm
Fuel Tank Capacity:............................. 60 liter with level gauge
Hopper Outlet:.................................... 100 mm
Hopper Capacity:................................ 300 liter
Hydraulic Tank Capacity:.................... 160 liter with inspection hatch
Hydraulic Cylinder Size:...................... 65 mm bore x 100 mm stroke x 27 mm rod
S-tube Casting Size:............................. 115 x 100
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 7 mm bore with 40 mm rods
Concrete Cylinder Stroke:................... 915 mm
Concrete Cylinder Diameter:.............. 127 mm
Maximum Aggregate:.......................... 20 mm
Piston Head Pressure:........................ 100 bar
Theoretical Output (C.Y.P.H.):............ 25M3
Alpha Pump Series P35-HP
The Alpha S-tube trailer pump was designed to replace mechanical ball pumps widely used to pump 10mm pea gravel mixes. Mechanical ball valve pumps were experiencing difficulties pumping the harsher concrete mixes now being produced. Due to popular demands for a smaller compact high pressure pump, the Alpha has developed into a wide output range from 10 cubic meters per hour to 30 Cubic meters per hour.
Weight Dry:........................................... 1700 kg
Length:.................................................. 4000 mm
Width:................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:..................................... 600 mm
Fuel Tank Capacity:.............................. 60 liter with level gauge
Hopper Outlet:..................................... 100 mm
Hopper Capacity:................................. 300 liter
Hydraulic Tank Capacity:..................... 160 liter with inspection hatch
Hydraulic Cylinder Size:....................... 65 mm bore x 100 mm stroke x 27 mm rod
S-tube Casting Size:............................. 115 x 100
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 7 mm bore with 40 mm rods
Concrete Cylinder Stroke:................... 915 mm
Concrete Cylinder Diameter:.............. 127 mm
Maximum Aggregate:.......................... 20 mm
Piston Head Pressure:........................ 120 bar
Theoretical Output (C.Y.P.H.):............ 25M3
Trojan Pump Series
Trojan Series P40
The Trojan series trailer pump was developed to replace the successful Transcrete Sidewinder series trailer pump that incorporated a full hydraulic cycling system. The Trojan incorporates the latest solid state cycling system and closed loop “over centre” hydraulic circuit. The Trojan is better suited to the demands of the harsh low slump mixes of today.
Weight Dry:.......................................... 2000 kg
Length:................................................. 4500 mm
Width:................................................... 1700 mm
Height:.................................................. 1600 mm
Hopper Height:..................................... 650 mm
Fuel Tank Capacity:.............................. 80 liter with level gauge
Hopper Outlet:..................................... 127 mm through full Trojan range
Hopper Capacity:................................. 540 liter through full Trojan range
Hydraulic Tank Capacity:..................... 180 liter with inspection hatch
Hydraulic Cylinder Size:...................... 75 mm bore x 127 mm stroke x 29 mm rod
S-tube Casting Size:............................. 152 x127
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 75 mm
Concrete Cylinder Stroke:................... 915 mm
Concrete Cylinder Diameter:.............. 152 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:......................... 100 bar
Theoretical Output (C.Y.P.H.):.............. 38M3
Trojan Series P50
The Trojan series trailer pump was developed to replace the successful Transcrete Sidewinder series trailer pump that incorporated a full hydraulic cycling system. The Trojan incorporates the latest solid state cycling system and closed loop “over centre” hydraulic circuit. The Trojan is better suited to the demands of the harsh low slump mixes of today.
Weight Dry:............................................ 2300 kg
Length:.................................................. 4500 mm
Width:.................................................... 1700 mm
Height:................................................... 1700 mm
Hopper Height:...................................... 650 mm
Fuel Tank Capacity:............................... 80 liter with level gauge
Hopper Outlet:...................................... 127 mm through full Trojan range
Hopper Capacity:.................................. 540 liter through full Trojan range
Hydraulic Tank Capacity:..................... 180 liter with inspection hatch
Hydraulic Cylinder Size:....................... 75 mm bore x 127 mm stroke x 29 mm rod
S-tube Casting Size:............................. 152 x127
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 90 mm
Concrete Cylinder Stroke:................... 915 mm
Concrete Cylinder Diameter:.............. 152 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:......................... 135 bar
Theoretical Output (C.Y.P.H.):............. 38M3
Trojan Series P60
The Trojan series trailer pump was developed to replace the successful Transcrete Sidewinder series trailer pump that incorporated a full hydraulic cycling system. The Trojan incorporates the latest solid state cycling system and closed loop “over centre” hydraulic circuit. The Trojan is better suited to the demands of the harsh low slump mixes of today.
Weight Dry:.......................................... 2450 kg
Length:................................................ 4800 mm
Width:.................................................. 1700 mm
Height:................................................. 1750 mm
Hopper Height:.................................... 650 mm
Fuel Tank Capacity:............................. 80 liter with level gauge
Hopper Outlet:.................................... 127 mm through full Trojan range
Hopper Capacity:................................ 540 liter through full Trojan range
Hydraulic Tank Capacity:.................... 180 liter with inspection hatch
Hydraulic Cylinder Size:...................... 75 mm bore x 127 mm stroke x 29 mm rod
S-tube Casting Size:............................ 152 x127
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 75 mm
Concrete Cylinder Stroke:................... 1125 mm
Concrete Cylinder Diameter:.............. 165 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:......................... 85 bar
Theoretical Output (C.Y.P.H.):............. 49M3
Trojan Series P60-HP
The Trojan series trailer pump was developed to replace the successful Transcrete Sidewinder series trailer pump that incorporated a full hydraulic cycling system. The Trojan incorporates the latest solid state cycling system and closed loop “over centre” hydraulic circuit. The Trojan is better suited to the demands of the harsh low slump mixes of today.
Weight Dry:........................................... 2650 kg
Length:.................................................. 4800 mm
Width:................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:.................................... 650 mm
Fuel Tank Capacity:.............................. 80 liter with level gauge
Hopper Outlet:..................................... 127 mm through full Trojan range
Hopper Capacity:................................. 540 liter through full Trojan range
Hydraulic Tank Capacity:..................... 180 liter with inspection hatch
Hydraulic Cylinder Size:....................... 75 mm bore x 127 mm stroke x 29 mm rod
S-tube Casting Size:............................. 152 x127
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 90 mm
Concrete Cylinder Stroke:................... 1125 mm
Concrete Cylinder Diameter:.............. 165 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:........................ 115 bar
Theoretical Output (C.Y.P.H.):............ 45M3
Trojan Series P70
The Trojan series trailer pump was developed to replace the successful Transcrete Sidewinder series trailer pump that incorporated a full hydraulic cycling system. The Trojan incorporates the latest solid state cycling system and closed loop “over centre” hydraulic circuit. The Trojan is better suited to the demands of the harsh low slump mixes of today.
Weight Dry:........................................... 2650 kg
Length:.................................................. 4800 mm
Width:................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:.................................... 700 mm
Fuel Tank Capacity:............................. 80 liter with level gauge
Hopper Outlet:.................................... 127 mm through full Trojan range
Hopper Capacity:................................ 540 liter through full Trojan range
Hydraulic Tank Capacity:.................... 180 liter with inspection hatch
Hydraulic Cylinder Size:...................... 75 mm bore x 127 mm stroke x 29 mm rod
S-tube Casting Size:............................ 152 x127
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 35
Hydraulic Cylinder Size:...................... 90 mm
Concrete Cylinder Stroke:................... 1125 mm
Concrete Cylinder Diameter:.............. 175 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:......................... 100 bar
Theoretical Output (C.Y.P.H.):............. 55M3
Shotcrete Trailer Mounted Concrete Pump Series
Concrete Pump P10
In 1973 the Transcrete designed Sidewinder S-tube concrete pump revolutionized the way concrete was sprayed Worldwide. The S-tube concrete valve is now the industry standard. Transcrete has now developed a wide range of models to handle all demands from 8M3 to 60M3 per hour outputs.
Weight Dry:........................................... 1250 kg
Length:.................................................. 3500 mm
Width:.................................................... 1700 mm
Height:.................................................. 1600 mm
Hopper Height:..................................... 450 mm
Fuel Tank Capacity:.............................. 80 liter with level gauge
Hopper Outlet:..................................... 75 mm
Hopper Capacity:................................. 300 liter
Hydraulic Tank Capacity:.................... 100 liter
Hydraulic Cylinder Size:...................... 65 mm
S-tube Casting Size:............................ 75 x 75
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 70 mm
Concrete Cylinder Stroke:................... 600 mm
Concrete Cylinder Diameter:.............. 75 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:........................ 300 bar
Theoretical Output (C.Y.P.H.):............. 8M3
Concrete Pump P25
In 1973 the Transcrete designed Sidewinder S-tube concrete pump revolutionized the way concrete was sprayed Worldwide. The S-tube concrete valve is now the industry standard. Transcrete has now developed a wide range of models to handle all demands from 8M3 to 60M3 per hour outputs.
Weight Dry:........................................... 1700 kg
Length:.................................................. 3500 mm
Width:................................................... 1700 mm
Height:.................................................. 1700 mm
Hopper Height:.................................... 450 mm
Fuel Tank Capacity:............................. 80 liter with level gauge
Hopper Outlet:.................................... 100 mm
Hopper Capacity:................................ 300 liter
Hydraulic Tank Capacity:................... 150 liter
Hydraulic Cylinder Size:..................... 65 mm
S-tube Casting Size:............................ 115 x 100
Variable Volume Control:................... Yes
Maximum strokes per minute:........... 40
Hydraulic Cylinder Size:..................... 70 mm
Concrete Cylinder Stroke:.................. 600 mm
Concrete Cylinder Diameter:............. 125 mm
Maximum Aggregate:......................... 30 mm
Piston Head Pressure:....................... 120 bar
Theoretical Output (C.Y.P.H.):........... 18M3
Concrete Pump P40
In 1973 the Transcrete designed Sidewinder S-tube concrete pump revolutionized the way concrete was sprayed Worldwide. The S-tube concrete valve is now the industry standard. Transcrete has now developed a wide range of models to handle all demands from 8M3 to 60M3 per hour outputs.
Weight Dry:........................................... 2450 kg
Length:.................................................. 4800 mm
Width:.................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:..................................... 650 mm
Fuel Tank Capacity:.............................. 80 liter with level gauge
Hopper Outlet:..................................... 127 mm through full Trojan range
Hopper Capacity:................................. 540 liter through full Trojan range
Hydraulic Tank Capacity:.................... 180 liter with inspection hatch
Hydraulic Cylinder Size:...................... 75 mm
S-tube Casting Size:............................ 152 x127
Variable Volume Control:................... Yes
Maximum strokes per minute:............ 40
Hydraulic Cylinder Size:...................... 75 mm
Concrete Cylinder Stroke:................... 925 mm
Concrete Cylinder Diameter:.............. 152 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:......................... 135 bar
Theoretical Output (C.Y.P.H.):............. 38M3
Concrete Pump P60-HP
In 1973 the Transcrete designed Sidewinder S-tube concrete pump revolutionized the way concrete was sprayed Worldwide. The S-tube concrete valve is now the industry standard. Transcrete has now developed a wide range of models to handle all demands from 8M3 to 60M3 per hour outputs.
Weight Dry:........................................... 2650 kg
Length:.................................................. 4800 mm
Width:................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:..................................... 650 mm
Fuel Tank Capacity:.............................. 80 liter with level gauge
Hopper Outlet:..................................... 127 mm through full Trojan range
Hopper Capacity:................................. 540 liter through full Trojan range
Hydraulic Tank Capacity:.................... 180 liter with inspection hatch
Hydraulic Cylinder Size:...................... 75 mm
S-tube Casting Size:............................ 152 x127
Variable Volume Control:................... Yes
Maximum strokes per minute:........... 40
Hydraulic Cylinder Size:..................... 90 mm
Concrete Cylinder Stroke:.................. 1125 mm
Concrete Cylinder Diameter:............. 165 mm
Maximum Aggregate:......................... 30 mm
Piston Head Pressure:....................... 115 bar
Theoretical Output (C.Y.P.H.):........... 45M3
Concrete Pump P70
In 1973 the Transcrete designed Sidewinder S-tube concrete pump revolutionized the way concrete was sprayed Worldwide. The S-tube concrete valve is now the industry standard. Transcrete has now developed a wide range of models to handle all demands from 8M3 to 60M3 per hour outputs.
Weight Dry:........................................... 2650 kg
Length:.................................................. 4800 mm
Width:.................................................... 1700 mm
Height:.................................................. 1750 mm
Hopper Height:..................................... 700 mm
Fuel Tank Capacity:.............................. 80 liter with level gauge
Hopper Outlet:..................................... 127 mm through full Trojan range
Hopper Capacity:................................. 540 liter through full Trojan range
Hydraulic Tank Capacity:..................... 180 liter with inspection hatch
Hydraulic Cylinder Size:....................... 75 mm
S-tube Casting Size:............................. 152 x127
Variable Volume Control:.................... Yes
Maximum strokes per minute:............ 35
Hydraulic Cylinder Size:...................... 100 mm
Concrete Cylinder Stroke:................... 1125 mm
Concrete Cylinder Diameter:.............. 175 mm
Maximum Aggregate:.......................... 30 mm
Piston Head Pressure:........................ 133 bar
Theoretical Output (C.Y.P.H.):............ 55M3
