WESTERN SHOTCRETE MANUFACTURING PUMPS

Western Shotcrete Equipment has been in the shotcrete industry for over 30 years. We have excelled in building optimal quality shotcrete equipment because we know shotcrete. Our shop is tailored to equip you with everything you need to stay ahead of the competition in the field, day in, day out.

Built in the USA, every step of the way.


Shotcrete & Gunite Pumps

Western Shotcrete Equipment Warrior Shotcrete & Gunite Pump

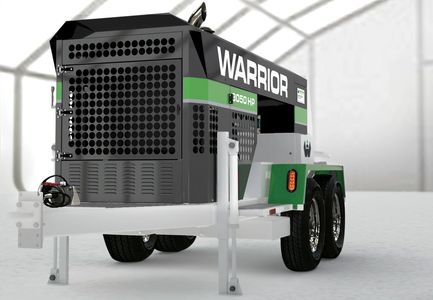

Warrior Shotcrete & Gunite Pump

Say hello to a new level of performance in shotcrete pumping. Meet the Warrior 3050 HP. A shotcrete pump so refined, so powerful, and so durable that you will be begging for any challenge you can throw at it.


KEY FEATURES

• New tandem axle design allows for improved towing


Weight Dry:......................................... 8600 lbs

Length:................................................ 220”

Width:.................................................. 77”

Height:................................................. 87”

Hopper Height:.................................... 45”

Brakes:................................................. Electro/Hydraulic

Axle:..................................................... Tandem

Outriggers/Remixer:........................... Hydraulic

Fuel Tank Capacity:............................ 50 gal

Variable Volume Control:................... 0 - Full

Hydraulic Tank Capacity:................... 80 gal

Main Hydraulic Pump:....................... Kawasaki K3VL140 (140cc/min)

Shift Cylinder:.................................... 1 (Optional 2)

Outlet Size:........................................ 5" Heavy Duty

Drive Cylinders:................................. 4”

Concrete Cylinder Diameter:............ 6”/Stroke: 39”

Maximum Aggregate:........................ 1 1/2”

Piston Head Pressure:...................... 1700 PSI

Theoretical Output (C.Y.P.H.):.......... 56 yd3/h
